NIZMO ENERGY SOLUTIONS

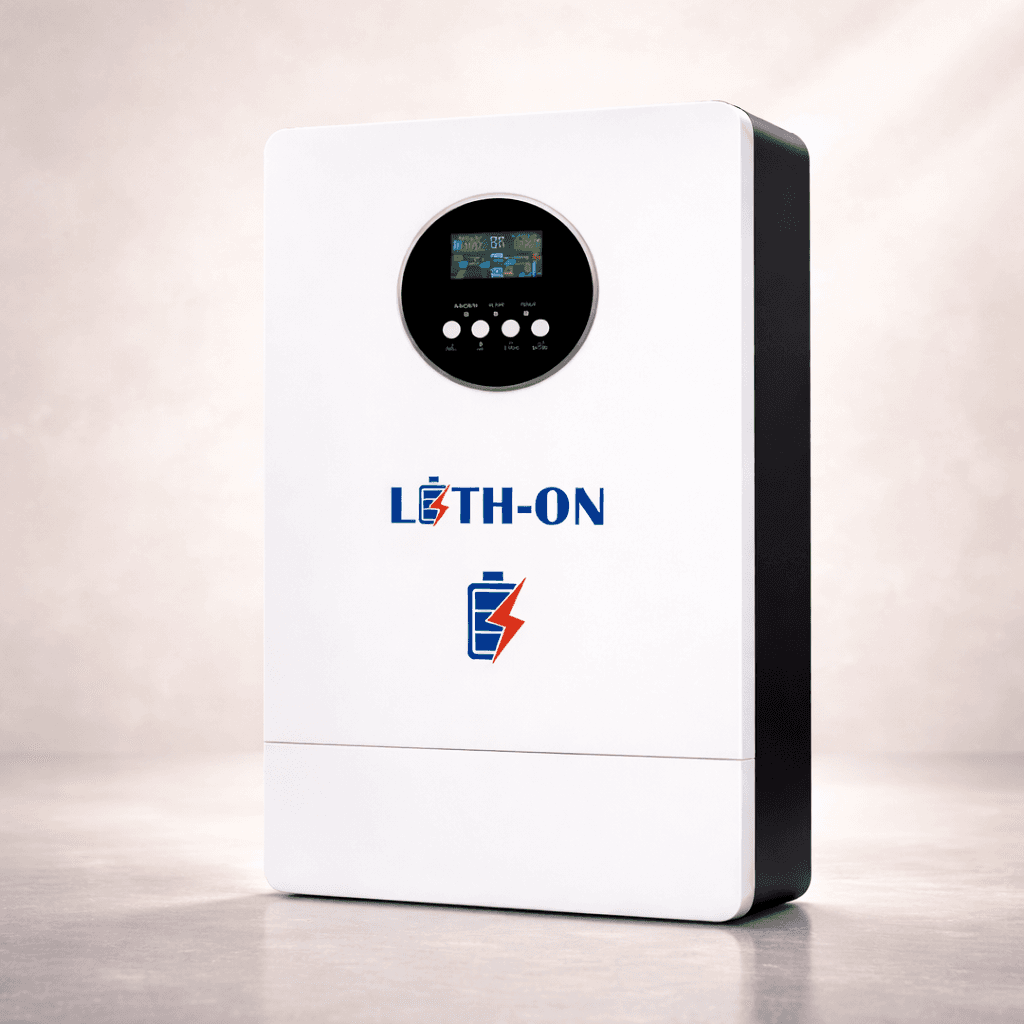

ACTIVE HYBRID SOLAR INVERTER (HIGH-FREQUENCY SERIES)
Series Overview
The Active Hybrid Solar Inverter Series is a high-frequency, grid-synchronized power management system designed to intelligently control and optimize energy flow between solar generation, battery storage, and utility supply.
The Active Hybrid Solar Inverter Series is a high-frequency, grid-synchronized power management system designed to intelligently control and optimize energy flow between solar generation, battery storage, and utility supply.
Built with advanced power electronics and intelligent control logic, this inverter acts as the central processing unit of an energy system, enabling efficient conversion, distribution, and monitoring of power across multiple sources.
Unlike conventional inverters, this series supports:
•Lithium battery optimization (with advanced BMS compatibility)
•Smart power distribution between solar, grid, and battery
•Parallel operation for load expansion (up to multiple units)
•High-efficiency, low-consumption operation (LPF design)
Its high-frequency architecture ensures:
•i Compact design
• Faster response time
• Improved energy efficiency
Unlike pure off-grid systems, this series remains connected to the utility grid, allowing it to:
•Utilize solar energy as the primary source
•Store excess energy in a lithium battery
•Draw from or feed back to the grid when required.
This creates a multi-source energy ecosystem, ensuring maximum efficiency, uninterrupted power, and optimized energy cost management.
At its core, the system integrates:
• Solar inverter
• Lithium battery (LiFePO4)
• Grid synchronization system
• Smart energy controller
All managed through an intelligent control architecture.
Detailed specifications
Detailed specifications
| Product | Specifications |
|---|---|
| NE3024F | Active hybrid Solar Inverter | 3.0 kW |
| NE3624HF | Active hybrid Solar Inverter | 3.6kW |
| NE5548NFP | Active hybrid Solar Inverter | 5.5kW |
| NE6248HFP | Active hybrid Solar Inverter | 3.2kW |
| NE8048HFP | Active hybrid Solar Inverter | 8.0kW |
| NE8648HFP | Active hybrid Solar Inverter | 8.6kW |
| NE10048HFP | Active hybrid Solar Inverter | 10kW |
| NE110048HFP | Active hybrid Solar Inverter | 11kW |
Advanced Features
Solar Solutions for A Brighter Future
Lithium Battery Auto-restart Function
More convenient for lithium battery charging with intelligent auto-restart capability
Intelligent Power Supply Mode
Intelligent distribution of solar panel, mains, and battery power sharing
Adjustable Charging Voltage
Utility and PV charging voltage adjustable to match different battery charging requirements
Slim Body Design
Convenient installation and transportation with compact form factor
Battery Reverse Connection Protection
Safe installation with fuse switch protection against reverse connection
PF1.0 High Efficiency
Lower consumption with energy conservation, environmental protection, and cost savings
Battery-Free Operation
Support working without battery to reduce solar system cost
Parallel Function
Up to maximum 9 units parallel connection to enlarge more loads
High Precision Output
5% high precision output voltage to take care of your appliances
Communication Options
External WiFi support to supervise your system at any time
BMS Function
Built-in battery management system for lithium battery protection
